The Hydro-Defensive Shield of Massafra: Medieval Castle Bastions and Gorge-Driven Fortress Engineering

Rising from the calcareous plateau of the Murge Tarantine, Massafra conceals one of Puglia’s most ingeniously layered defensive systems beneath its whitewashed streets and church towers. Two ancient ravines slice through the urban fabric, their near-vertical limestone walls carved by millennia of water erosion into a natural fortress perimeter that no military engineer could have bettered. The Castello Aragonese anchors this geography from the eastern approach, its cylindrical towers completing a defensive circuit begun by the gorges themselves — a marriage of geology and military architecture that makes Massafra’s fortifications one of the most compelling case studies in southern Italian defensive urbanism.

Key Takeaways

Dual gorge defense: Massafra’s two ravines — the Gravina di San Marco and the Gravina della Madonna della Scala — function as natural moats, cutting the urban plateau on separate axes and creating interlocking defensive barriers that cover three-quarters of the settlement’s perimeter without a single metre of constructed wall.
Hydro-geological origins: The ravines were incised over millennia by seasonal water torrents cutting into the calcarenite plateau, producing cliff faces of 15 to 30 metres that remain among the steepest natural barriers in the Taranto hinterland and that deepen progressively as erosion continues.
Castle evolution over five centuries: The castle fabric spans Norman foundations, Swabian consolidation, Angevin adaptation, and thoroughgoing Aragonese refortification in the late fifteenth and early sixteenth centuries, each phase responding to shifts in siege technology and political authority.
Cylindrical tower typology: Massafra’s castle employs cylindrical corner towers — a transitional form between the square flanking towers of medieval design and the fully angled bastions of sixteenth-century Renaissance military engineering — optimised for deflecting artillery and eliminating corner dead ground.
Byzantine troglodyte depth: The ravine walls are honeycombed with rupestrian churches, cave oratories, and rock-cut dwellings dating from the sixth to the tenth centuries, providing a second defensive layer of concealed refuges that prolonged the site’s strategic value through multiple eras of conquest and siege.
Integrated engineering: The castle was positioned precisely to cover the eastern approach left unguarded by the ravines, completing a near-continuous defensive perimeter that exploited every feature of the site’s geology and required the minimum garrison investment to defend the maximum area.

Introduction: Massafra and the Geometry of Natural Defense

The defensive architecture of medieval and early modern southern Italy rarely operated in isolation from the landscape. Norman, Swabian, Angevin, and Aragonese military engineers all recognised quickly that the most economical fortification exploited natural obstacles rather than replacing them with constructed works. Rivers, marshes, coastal cliffs, and inland ravines shaped the distribution and character of strongholds across the Mezzogiorno, and nowhere is this lesson more legibly inscribed in the urban fabric than at Massafra.

Massafra occupies a position of considerable strategic logic. The town sits atop a limestone plateau roughly 110 metres above the Ionian coastal plain, approximately 25 kilometres north-west of Taranto. The plateau’s edges are defended on two perpendicular axes by the two gravine — deep canyon-like incisions in the calcareous rock that channel seasonal water and present near-vertical cliff faces to any approaching force. The castle fills the gap, covering the eastern and south-eastern approaches where the plateau surface remains continuous with the surrounding terrain and where assault by organised military force was therefore most feasible.

The resulting system is neither purely natural nor purely constructed: it is a synthesis that makes the ravines do the defensive work on three sides while concentrating human engineering precisely where geology alone proves insufficient. This integrated design, spanning the Norman period through the Aragonese fifteenth century, gives Massafra’s military geography the character of a hydro-defensive shield — a perimeter whose primary barrier is geological and hydrological in origin, supplemented by constructed fortifications at the points where the natural barrier fails.

Three distinct defensive layers operate simultaneously at Massafra. The first is purely geological: the near-vertical calcarenite cliff faces of the two ravines, impassable to any siege train and extraordinarily difficult for infantry under fire. The second is hydrological: the seasonal water courses at the gorge floors that convert cliff-bound obstacles into genuine hydraulic barriers during winter and spring. The third is constructed: the castle itself, covering the one approach where the ravines provide no natural barrier, with its cylindrical towers, thickened curtain walls, and rock-cut ditch. Understanding how these three layers interact is the central task of any analysis of Massafra’s military architecture.

This article examines that system in its geological, historical, and architectural dimensions. It traces the evolution of the castle fabric from its Norman foundations through five centuries of military adaptation, analyses the role of the gorges as defensive infrastructure, explores the distinctive contribution of the Byzantine troglodyte settlements to the site’s defensive depth, and situates Massafra within the broader tradition of Puglia’s gravina fortress towns. The result is an account of one of the most sophisticated examples of landscape-integrated military architecture in the Italian South.

The Gravina System: Hydro-Geological Formation and Defensive Geography

Massafra’s two ravines are the primary armature of the town’s defensive geography. Understanding their formation and spatial geometry is inseparable from understanding why the castle occupies its position and takes the architectural form it does.

The gravine of the Taranto hinterland formed during the Pleistocene through the progressive incision of seasonal water courses — known locally as lame — into the calcarenite plateau of the Murge Tarantine. Calcarenite is a sedimentary limestone composed largely of cemented shell fragments and marine bioclasts, characteristically soft enough to erode rapidly under sustained hydraulic pressure but hard enough, once dry, to support vertical cliff faces without collapse. This material property is fundamental to the military value of the ravines: the gorge walls stand essentially vertical because calcarenite’s cementation is strong enough to resist gravitational spalling once the cutting water course has established its channel.

The two ravines at Massafra approach the plateau from different directions and converge near the town centre. The Gravina di San Marco runs roughly north–south, cutting the western portion of the plateau. The Gravina della Madonna della Scala follows a separate axis, its course oriented to drain a different catchment basin to the south-west. Together, they create a forked topographic incision that renders three-quarters of the urban plateau perimeter naturally inaccessible to organised assault. No medieval besieging force could approach from the north, west, or south without encountering the ravine systems; the eastern approach, where the plateau surface continues uninterrupted toward the Taranto plain, is the single credible avenue of attack.

The gorge profiles are characteristically asymmetric. The upstream wall — the side facing the higher ground from which drainage originates — tends to be steeper and more undercut, while the downstream wall slopes more gradually toward the gorge floor. At their deepest, the ravines at Massafra reach 15 to 30 metres below the plateau surface, with cliff walls rising at angles approaching 80 to 90 degrees for significant portions of their height. The gorge floors vary in width from a few metres in the narrower upper reaches to 20 or more metres in the broader lower sections, depending on the local erosional history of the channel.

The seasonal hydrological dimension is essential to the military reading of these features. The Mediterranean climate of coastal Puglia concentrates rainfall in winter and spring; the lame carried substantial water flows during these seasons, filling the gorge floors with torrents that added a genuine hydraulic obstacle to the already formidable cliff faces. In summer and autumn, the gorge floors are largely dry — but the cliff walls remain impassable regardless of season. A medieval besieging force could not manoeuvre a siege train — catapults, battering rams, siege towers — into position at the ravine approaches in any season. In the winter and spring, the seasonal floods made even infantry crossing of the gorge floors precarious. The hydrological calendar was thus built into Massafra’s defensive calculus from the beginning of its occupation.

The strategic implication was clear to every military authority that controlled Massafra from the Norman period onward: only the eastern approach required defended construction. The ravines handled everything else, providing the equivalent of constructed fortification on three sides without the labour, expense, or garrison investment that built walls would have demanded.

Norman Foundations: The Origins of Massafra’s Constructed Defenses

The Norman conquest of southern Italy, completed across the eleventh century under the Hauteville family, imposed a systematic restructuring of defensive infrastructure throughout Puglia and Basilicata. Norman military policy combined territorial control with urban consolidation: key strategic settlements received castles that simultaneously enforced feudal authority, anchored the road network, and served as mustering points for local levies. Massafra, with its naturally defended plateau position and commanding sightlines over the Ionian coastal plain toward Taranto, was an obvious candidate for early Norman fortification investment.

Norman military architecture in Puglia at this period employed square or rectangular towers of local calcarenite rubble within an enclosing curtain wall, with a donjon — a principal keep — as the primary defensive and residential structure. The preference for square towers reflects both the constructional efficiency of right-angled masonry and the tactical doctrine of the period, which prioritised height advantage and elevated missile platforms over deflective geometry. Artillery as a wall-breaching weapon was not a factor in Norman military calculations; the threats against which the Norman tower-and-curtain system was designed were escalading infantry, battering rams, and the undermining of wall foundations.

The site chosen for the initial Norman fortification at Massafra was the promontory at the plateau’s eastern edge — the point of maximum exposure to approach from the plain and therefore the most critical location for constructed defense. From this position, the castle’s defenders commanded observation across the Taranto plain at considerable distance, providing early warning of approaching forces and time for the town’s population to prepare defenses or seek shelter in the ravines below.

The Norman castle’s initial construction was almost certainly a relatively simple enclosure — a curtain wall with corner towers and a gate structure, enclosing a courtyard with timber buildings serving as garrison barracks, stables, and storage. The donjon, if one existed in the first Norman phase, provided the garrison’s last refuge and the lord’s residential accommodation. The construction material throughout was local calcarenite, quarried from the plateau surface directly adjacent to the building site: an abundant resource requiring minimal transport investment.

Under Swabian administration in the thirteenth century, the castle at Massafra was incorporated into the comprehensive fortification management program of Frederick II’s Kingdom of Sicily. Frederick invested particularly in the region’s primary strategic nodes — Lucera, Castel del Monte, the coastal castles of the Adriatic shore — but secondary sites also received maintenance and upgrading within this systematic framework. The Swabian contribution to Massafra’s fabric is difficult to isolate archaeologically from the Norman and later phases, but the general rationalisation of the kingdom’s defensive infrastructure under Frederick’s administration extended to second-tier fortified sites throughout Puglia.

The Angevin period, following the defeat of the Hohenstaufen at Benevento in 1266, brought French-influenced military administration to the Kingdom of Naples. Angevin fortification in southern Italy is characterised by increased investment in residential and administrative facilities within castle enclosures, the elaboration of gate structures, and the introduction of sophisticated water supply arrangements — cisterns carved into the rock beneath the castle floors. At Massafra, the Angevin period consolidated the castle’s role as the administrative centre of the local feudal territory and introduced the cistern infrastructure that would sustain the garrison through extended sieges.

The Architecture of Massafra’s Castle: Towers, Walls, and Curtain Lines

The Castello Aragonese di Massafra as it stands today is primarily the product of the Aragonese refortification of the late fifteenth and early sixteenth centuries, built over and partly incorporating the earlier Norman, Swabian, and Angevin fabric. Reading the castle’s architecture requires distinguishing these layered phases, each of which left marks in the masonry, plan, and defensive detailing of the surviving structure.

The castle occupies a roughly quadrangular plan, adapted to the natural contours of the plateau edge. The wall lines are not strictly orthogonal — the plan reflects both the uneven topography of the promontory and the pragmatic adjustments of successive building campaigns. The curtain walls run between the corner towers, their thickness ranging from approximately two metres in the earliest phases to a greater dimension in the Aragonese rebuilding. This increase in wall thickness is diagnostic of the transition from medieval to early modern military architecture: it reflects the imperative to absorb the kinetic energy of iron cannonballs rather than simply resist the static pressure of escalading infantry, the principal threat against which the earlier medieval walls were designed.

Tower Typology and Transitional Military Architecture

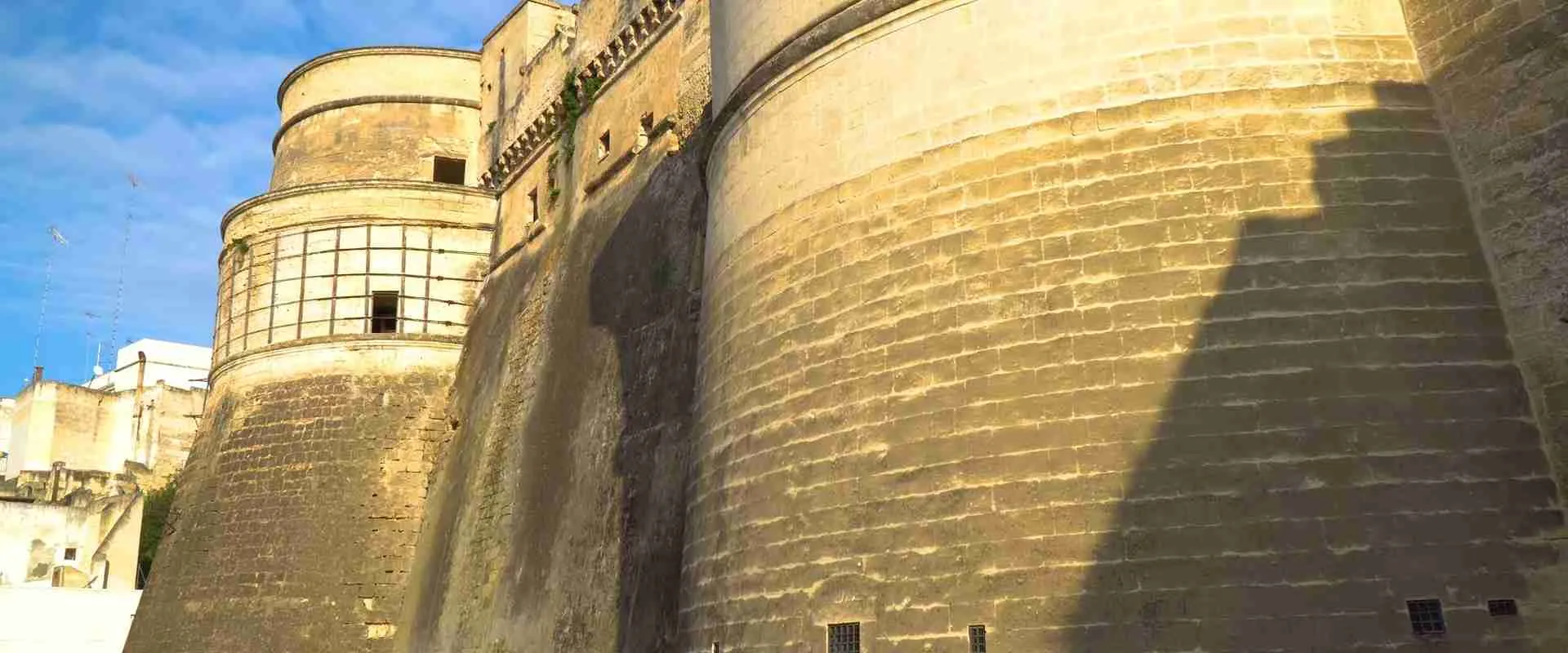

The castle’s most visible architectural feature is its cylindrical corner towers. This choice of tower form places Massafra’s fortification firmly within the transitional phase of military architecture that characterises Aragonese building in the second half of the fifteenth century across the Kingdom of Naples.

Precision of terminology is important here. The word “bastion” in strict military architectural usage refers to the low, angled, arrow-headed projections developed in the Italian states during the early sixteenth century — the angular bastion of the trace italienne system, designed to eliminate the dead ground at tower bases that round and square medieval towers left unswept by defensive fire. Massafra’s castle does not feature trace italienne bastions: these were not fully developed during the primary phase of Aragonese building in the late fifteenth century, and the castle’s defensive geometry does not reflect the triangular-projection principles of the mature bastioned system. What Massafra’s castle has instead are cylindrical towers — a form that represents the military engineering compromise of the transitional period.

Cylindrical towers differ from square medieval flanking towers in several important respects. Their curved surface deflects rather than absorbs direct artillery impact, distributing the kinetic energy of cannonball strikes across the curvature rather than concentrating it at a flat face or a vulnerable corner. They eliminate the blind angles that square tower corners created: defenders on a cylindrical tower can bring fire to bear along a wider arc of the curtain wall below. They also resist projectile impact at the tower-curtain wall junction, a structurally weak point in the square tower tradition because the right-angled corner concentrated stress at a single masonry joint. The cylindrical form distributes stress more evenly around the circumference, increasing the tower’s survivability under sustained bombardment.

The battered bases of Massafra’s towers add a further defensive refinement. The batter — an outward splay of the lower masonry courses, reducing the tower’s diameter from base to parapet — serves multiple military functions. It deflects cannonballs downward and away from the wall base, causing them to ricochet rather than impact at the most structurally critical point. It places masonry debris at the maximum distance from the wall face, preventing attacking infantry from using rubble as a ramp for escalade. And it complicates the geometry of mining operations: a battered tower base has more masonry to remove and presents a more difficult undermining target than a vertical-walled predecessor.

Curtain Wall Analysis

The curtain walls between towers are built from calcarenite ashlar — rectangular blocks of the local limestone cut to roughly consistent dimensions and laid in regular courses with a lime mortar matrix. The calcarenite is sourced from the plateau itself: the same water-cut stone that forms the ravine walls provided an abundant local quarry supply, reducing transport costs to near zero in an era when haulage regularly exceeded quarrying in cost.

The ashlar work is competent rather than refined, with occasional irregular courses where the stone quality required adjustment, and more careful dressing at gate surrounds and tower bases where dimensional precision was architecturally and structurally most important. The wall-walk parapet shows evidence of multiple modifications — a palimpsest of defensive upgrades as technology changed. Early crenellations in the Norman-period fabric gave way to lower, thicker merlons in the Aragonese rebuilding, reflecting the revised defensive calculus in which cowering behind high merlons became less valuable once firearms-equipped defenders needed lower, more stable shooting positions. Embrasures for harquebusiers — wide-mouthed openings in the parapet, splayed inward to allow a wide field of fire from a protected shooter — appear in the Aragonese fabric and differ markedly from the narrow arrow loops of the Norman and Angevin phases.

The Rock-Cut Ditch

One of the most significant features of Massafra’s castle from a military engineering perspective is the rock-cut ditch excavated at the landward approaches. Where the ravines terminate and the plateau surface continues unbroken toward the eastern plain, the castle builders supplemented the natural defensive barrier with an artificial ditch cut directly into the calcarenite bedrock. This dry moat — comparable in profile to similar Aragonese examples elsewhere in the kingdom — was formidable in character: deep-sided, vertical-walled, and impossible to fill without bringing material from outside the immediate site.

The rock-cut ditch fulfils several tactical functions that excavated earth ditches cannot match. It cannot be filled under practical siege conditions, since the material required to bridge a rock-cut trench must be brought from distance under defensive fire. It does not erode, slump, or wash out in rainfall, maintaining its profile indefinitely without maintenance. Its vertical-walled calcarenite sides are as difficult to scale as the ravine walls themselves, presenting attackers with the same near-vertical surface. And its cut stone floor provides no concealment for miners attempting to work under the wall base: any undermining operation becomes immediately visible to defenders on the adjacent wall-walk, exposing the miners to direct fire before they can make structural progress.

The rock-cut ditch also serves a structural function inseparable from its military one. By cutting through the weathered surface calcarenite to the more competent rock below, the builders exposed solid bearing stone from which the adjacent curtain wall foundations could be taken efficiently. The ditch excavation and the foundation works were a single integrated operation: removing unsuitable surface material, exposing competent bearing rock, and creating a military obstacle from the excavated process — three engineering objectives achieved simultaneously at a single cost.

The Aragonese Transformation: Transitional Military Engineering in the Kingdom of Naples

The Aragonese conquest of the Kingdom of Naples under Alfonso I in 1442 initiated one of the most intensive programs of fortification modernisation in southern Italian history. Alfonso and his successors — Ferrante I (1458–1494), Alfonso II (1494–1495), and Federico I (1496–1501) — oversaw a systematic campaign of castle rebuilding and technical upgrading across the kingdom, driven by the increasingly destructive power of artillery and the military lessons drawn from the Italian Wars that began with Charles VIII of France’s invasion in 1494.

The Aragonese military engineering program drew on the expertise of a generation of architects grappling in real time with the technological transformation that gunpowder artillery represented. The classical medieval castle — high-walled, tower-studded, relying on height advantage and vertical obstacle — was demonstrably vulnerable to sustained artillery bombardment. The problem was not simply that cannonballs broke walls: it was that they created breaches that could be stormed faster than defenders could repair them, and that their psychological effect on garrison morale was itself a significant tactical weapon requiring no physical breach at all.

The Aragonese response at Massafra, as at other Pugliese sites, was a package of modifications rather than wholesale reconstruction. The existing fabric was adapted rather than demolished: curtain walls were thickened from the interior by filling them with rubble and compacted earth to create a wider cross-section capable of absorbing projectile energy. The earlier angular towers were replaced or encased in cylindrical forms. The wall-walk parapet was lowered and thickened. The rock-cut ditch was deepened and widened. Gate structures were reinforced with additional barriers and bending approaches designed to prevent direct cannon fire down the gate passage.

This Aragonese program falls in the period known to military architectural historians as the transitional phase — post-medieval but pre-trace italienne. The fully developed trace italienne system, with its low-profile earthwork ramparts, angled bastions projecting to eliminate dead ground, and wide ditches designed for flanking artillery fire from the bastion flanks, did not reach its canonical form until the 1520s–1540s. Massafra’s Aragonese castle predates this synthesis, embodying the experimental and pragmatic adaptations of an earlier generation that recognised artillery was transforming siege warfare but had not yet arrived at the comprehensive geometric solution. This is precisely what makes the castle historically valuable: it is a frozen moment in the technological transition, a structure that documents the specific anxieties and responses of the late fifteenth century in built stone.

The cylindrical tower as an Aragonese solution to the artillery problem deserves further analysis within the broader Italian context. The move from square to round tower was not universal across the Italian states: some military architects in the same period were experimenting with low, wide towers — the orillion — and with thickening towers so extensively that they became solid masonry platforms rather than hollow cylindrical drums. The Aragonese preference for the cylindrical hollow tower in Puglia represents a specific choice within a field of competing options, one that balanced cost, speed of construction, and structural performance in a way suited to the financial and labour resources of the kingdom’s secondary castle program.

The Hydro-Defensive Shield: Integration of Gorge and Castle

The concept of the hydro-defensive shield at Massafra describes not merely the presence of ravines near the castle but the functional integration of the two ravines and the constructed fortification into a single, spatially continuous defensive system. Understanding this integration requires examining the relationship between the gorges’ geometry and the castle’s position, orientation, and plan.

The key principle of the integrated system is coverage complementarity: the ravines cover the sectors where the castle cannot efficiently deploy its constructed defenses, and the castle covers the sector where the ravines provide no barrier. This is not coincidence. Every successive military authority that held Massafra placed its principal defensive investment at the eastern approach — the one axis where the ravines provide no assistance. The castle’s location is determined by the gorge geometry, not chosen independently of it.

The military mathematics of this arrangement is compelling. A castle with fully constructed perimeter defense — towers, curtain walls, ditches on all four sides — requires a garrison proportional to the entire perimeter length. A castle that defends only one side through construction, relying on natural barriers on the remaining three, can concentrate its entire garrison strength at the single vulnerable approach. Massafra’s defenders held the eastern front with their full military force, knowing that no credible attacking formation could approach from the ravine-defended sectors. The ravines were, in effect, a garrison multiplier — providing the defensive value of constructed fortification on three sides without requiring the soldiers to man them.

The seasonal hydrological dimension adds a further layer of tactical complexity. In winter and spring, the gorge floors carry substantial water in rainfall years, converting the cliff-bound obstacles into genuine hydraulic barriers. A besieging force arriving at Massafra in January faced not only cliff walls but running water at their bases. The hydraulic barrier was not permanent — the gorge floors are dry through summer and autumn — but its seasonal reliability meant that winter campaigns against Massafra were more difficult than summer campaigns by a margin that medieval military planners took seriously. The optimal besieging season — when the garrison’s stored water supply was most depleted and the ravine floors were dry — coincided with the summer months when supply chains for the investing force were under their own stress from heat and the demands of the agricultural cycle on the army’s peasant levies.

The castle’s integration with this hydrological system extended to water supply management within the walls. Cisterns cut into the calcarenite bedrock beneath the castle’s interior collected rainwater from roofed buildings and paved surfaces, storing it in plastered tanks that sustained the garrison through the dry season without access to external sources. The same geology that made the ravines defensive assets also made cistern construction straightforward: calcarenite cuts easily with iron tools and retains coolness in stored water through the hot Pugliese summers, reducing bacterial growth and extending the effective storage period. The hydrological logic of the site thus extended from the gorge defenses all the way into the castle’s underground infrastructure.

Rock-Cut Infrastructure: Byzantine Troglodyte Settlements as Defensive Depth

The ravines of Massafra are not empty geological features. Their walls are incised with an extraordinary concentration of rock-cut architecture dating primarily from the Byzantine period of southern Italy’s history — broadly the sixth through tenth centuries — a span that encompasses the Justinianic reconquest of the Italian peninsula, the long Byzantine administrative presence in Puglia, and the period of Arab raiding that drove communities into naturally defended positions across the region.

Rock-cut (rupestrian) architecture of this kind is characteristic of the gravina landscapes of Puglia and Basilicata. The calcarenite’s workability with iron tools made cave-cutting feasible without specialist construction skills or the mortar, transport, and timber resources required for surface building. The ravine walls’ depth and inaccessibility from above provided natural protection from weather and human threat. The moderate temperature stability of subsurface spaces made cave habitation genuinely comfortable in the extreme summer heat and damp winters of the Ionian coastal zone. The result, across the gravine settlements of the Taranto hinterland, was an extensive network of cave churches, domestic spaces, storerooms, and agricultural facilities carved directly into the ravine walls over several centuries of intensive occupation.

At Massafra, the rupestrian heritage is concentrated in both ravines. The most significant complex is the sanctuary of the Madonna della Scala in the Gravina della Madonna della Scala — a rock-cut church complex with a remarkable staircase system descending the ravine wall, giving access to a cave oratory with Byzantine frescoes that represent some of the most important surviving examples of the region’s early medieval iconographic tradition. The sanctuary attracted pilgrimage from the surrounding territory and maintained continuous religious function across the medieval and early modern periods, its underground setting providing both protection from weather and the cool, dim atmosphere understood in the Byzantine tradition as appropriate to sacred space.

Other rupestrian complexes in the Massafra ravines include cave churches dedicated to saints venerated in the Eastern Christian tradition — San Leonardo, Sant’Antonio, and several anonymous cave oratories whose frescoed decoration is fragmentary but recognisably Byzantine in style and iconographic programme. Domestic cave clusters associated with the cave churches presumably housed the monastic communities that served them, distributed along the ravine walls at varying heights and accessible from narrow paths cut into the cliff face.

The military significance of this troglodyte infrastructure is multi-dimensional. In the short term, the cave complexes provided concealed refuges accessible to the town’s population during the Arab raiding that periodically struck the Pugliese coast from the ninth century onward. The ravine walls’ inaccessibility from above meant that attacking raiders who sacked the plateau settlement faced significant difficulty locating, let alone successfully assaulting, the population sheltering in the caves below. The vertical calcarenite faces between the plateau edge and the cave entrances constituted a second defensive barrier, separate from and supplementary to the castle, requiring entirely different tactical approaches to overcome.

In a formal siege context, the rupestrian complexes provided shelter for non-combatants that freed the castle garrison from responsibility for protecting the entire civilian population within the constructed fortification. A garrison holding the castle could operate at full military effectiveness with civilians distributed in the ravine caves, reducing consumption of the stored water and food supplies within the castle walls and extending the duration of effective resistance substantially. This dispersal of the defended population across multiple defended spaces — castle above, caves below — complicated any attacker’s siege management significantly: neutralising the cave population required occupying the ravine floors, a dangerous position under fire from cave entrances and the castle wall-walk above simultaneously.

The cave complexes also provided an alternative exit from the settlement in extremis. Narrow paths running along the ravine wall faces, invisible from the plateau above, allowed small groups to move between cave complexes and exit the ravine system at points well beyond an investing force’s picket lines. This option for concealed movement within the ravine system — a covered way in the geological rather than the constructed sense — was a tactical resource that no attacker could easily eliminate without physically controlling every metre of the gorge floor and cliff face simultaneously.

Military Engineering Comparisons: Massafra Among Puglia’s Gravina Fortresses

Massafra is not unique in exploiting the gravina landscape for defensive purposes. The wider Murge Tarantine and the transition zone between the plateau and the Ionian coastal plain contain several other settlements where the combination of calcarenite ravines and constructed fortification created comparable defensive systems. Examining Massafra in this comparative context reveals what is specific to its situation and what reflects a broader regional military-architectural tradition.

Grottaglie, approximately 20 kilometres to the east, occupies a similar plateau position with a gravina running below the historic centre. The Castello Episcopale of Grottaglie — functioning simultaneously as feudal castle and episcopal residence — is positioned at the ravine edge in a manner directly analogous to Massafra’s castle, with the gorge providing natural defense on one approach and the constructed walls covering the remaining perimeter. Grottaglie’s ravine is less dramatic in terms of depth and vertical character than Massafra’s gorges, reflecting slightly different calcarenite stratigraphy and erosional history, but the defensive principle is identical: the gorge handles the approach that constructed walls would otherwise need to defend.

Laterza, further north in the Taranto province, presents the most dramatic gravina landscape in the region. The Gravina di Laterza is deeper, wider, and more consistently vertical than Massafra’s ravines, constituting a natural barrier of extraordinary severity. The medieval castle at Laterza sits at the ravine’s head, exploiting its geometry such that the gorge functions as the primary defensive element and the castle supplements it at the gorge-head approach. The Aragonese rebuilding at Laterza followed a similar transitional program as at Massafra: cylindrical towers, thickened curtain walls, and rock-cut approaches at the landward exposure.

Castellaneta, to the north-west, offers a third comparison with an important structural difference. Its gravina bisects the urban plateau, with the historic centre distributed on both sides of the gorge and the castle positioned to command the main bridge crossing. This arrangement differs fundamentally from Massafra’s configuration: rather than the ravines functioning as external moats enclosing a defended plateau, Castellaneta’s gorge runs through the settlement, creating an internal barrier that the castle controlled. The military logic is different — controlling the bridge controls movement within the town — but the exploitation of calcarenite gorge topography for defensive economy follows the same regional tradition of landscape-integrated fortification.

What distinguishes Massafra within this comparison group is the dual-gorge geometry. At Grottaglie, Laterza, and Castellaneta, a single ravine is exploited defensively. Massafra’s two ravines, approaching from different directions and converging near the town centre, cover more approaches with geological barriers and leave a smaller exposed sector for the castle to defend. This dual-gorge configuration represents the most sophisticated version of the gravina fortress typology in the Taranto hinterland, and it is one of the principal reasons why Massafra’s fortification system warrants sustained architectural analysis as a regional exemplar.

The comparative analysis also reveals a consistent pattern in the relationship between natural and constructed defensive investment across these sites: the more formidable the natural barrier, the simpler the constructed fortification required to complete the defensive perimeter. At Laterza, where the single ravine is exceptionally deep and wide, the castle is relatively modest in its constructed complexity. At Grottaglie, where the ravine is shallower, the castle is more substantially engineered. Massafra’s dual gorges, covering three-quarters of the perimeter naturally, leave a single approach to be defended constructionally — and the Aragonese castle, while substantial, is concentrated at this single exposure rather than distributed around a fully perimeter-defended enclosure. The relationship between natural and artificial obstacle is thus inversely proportional across the gravina fortress typology: where geology is strongest, construction is most economical.

Masonry Analysis: Materials, Construction Techniques, and Foundation Geology

Any serious reading of Massafra’s castle architecture must engage with its material fabric. The choice of building material, the quality of construction, and the relationship between the castle’s masonry and the underlying geology all illuminate the engineering decisions and constraints that shaped the structure across its five centuries of active building history.

The primary building material throughout all construction phases is local calcarenite — the same sedimentary limestone that forms the ravine walls and the plateau surface. This is not coincidental: calcarenite is the only stone available in quantity within practical transport distance of the site, and its mechanical properties — easily worked when freshly quarried, hardening on exposure to air, moderately resistant to impact when cured — make it a serviceable fortification material. The quarrying of calcarenite from the plateau surface and ravine heads directly adjacent to the building site reduced transport costs to near zero, a critical consideration in medieval construction economics where haulage was frequently more expensive than quarrying and dressing the stone.

The calcarenite ashlar of Massafra’s castle shows the characteristic tooling marks of iron-chisel dressing. Block dimensions vary by phase and by location within the castle fabric, with the most regular and carefully dressed ashlar appearing at structurally and visually critical positions: gate portals, tower bases, window surrounds, and the corners where curtain wall sections meet at angles. The ordinary curtain wall fabric uses more variable blocks laid in roughly regular courses, with larger rubble fill behind the facing stone to build thickness economically. This two-zone wall construction — dressed ashlar facing over rubble core — is standard in medieval fortification across the Mediterranean and reflects the rational allocation of skilled labour to the visible, structurally critical face while using less-skilled work for the concealed bulk.

The lime mortar used throughout the castle construction is made from calcined local limestone mixed with sand of varying quality depending on availability. Medieval lime mortar in Pugliese contexts achieves adequate compressive strength for masonry bearing loads but is susceptible to degradation under prolonged wet conditions — a consideration in Puglia’s seasonal rainfall regime. This contributes to the deterioration observed in exposed wall-head sections where surface water has penetrated the mortar joints and freeze-thaw cycling, even at Massafra’s modest elevation and relatively mild climate, has promoted joint erosion over the centuries of exposure since active maintenance ceased.

Foundation geology presents the most interesting structural engineering dimension of the castle’s construction. The castle sits on the calcarenite plateau surface immediately adjacent to the ravine edge. The plateau surface at this point slopes slightly toward the gorge, and the ravine lip — the edge of the cliff face — is geologically active in the sense that calcarenite is subject to progressive weathering and episodic block failure at the overhang. Medieval builders positioned the castle walls well back from the ravine edge, recognising the instability of the immediate cliff-face zone, but the foundation geometry still required management of differential settlement across a building site that transitions from solid plateau rock on the inland side to progressively more weathered and fractured material toward the gorge edge.

The response to this foundation challenge is visible in the varying depth of the castle’s foundations at different points around the perimeter. Where the construction stands on continuous solid plateau calcarenite, foundations are relatively shallow — the rock provides bearing capacity at minimal depth. Where the plateau surface is more weathered, particularly in the zones approaching the ravine edge, deeper foundations seek competent rock, with the space between foundation and surface filled with compacted rubble to transfer loads efficiently to the bearing stratum. The rock-cut ditch excavation, which by cutting through the weathered surface calcarenite exposed the more competent rock below, thus served both the military purpose of obstacle-creation and the structural purpose of foundation preparation in a single operation.

The Water Dimension: Cisterns, Channels, and Hydrological Military Strategy

Medieval siege warfare was fundamentally a contest of endurance: the attacker’s capacity to maintain an investing force in the field balanced against the defender’s capacity to sustain the garrison and population within the walls. Water supply was the critical variable. A garrison with abundant stored water could hold out for the six to twelve months that many medieval sieges required to reduce a well-provisioned stronghold. A garrison without it faced surrender within weeks rather than months.

The cisterns of Massafra’s castle complex are accordingly one of the most significant features of its military engineering. Cut directly into the calcarenite bedrock beneath the castle’s interior courtyards and principal buildings, these underground reservoirs collected rainwater from every available impermeable surface — roofs, paved floors, wall-walks — and conducted it through stone channels to covered holding tanks. The calcarenite, naturally porous in its freshly cut state, was sealed with hydraulic lime plaster that rendered the cistern walls effectively impermeable, creating reliable long-term water storage in a material that would otherwise have drained freely into the surrounding bedrock.

The volume of cistern storage at a medieval castle was calculated to sustain the expected garrison and any sheltering population through the period between autumn rains and spring rains — the seven to eight months of Mediterranean dry season during which no reliable surface water source outside the walls was available. At Massafra, the cistern capacity would have been sized to sustain a garrison of several hundred soldiers plus the castle’s permanent household, maintaining not only drinking water but water for horses, fire-fighting in the timber-framed buildings within the enclosure, and the forge operations essential to weapon maintenance during a prolonged siege.

The relationship between water supply and the ravine system at Massafra introduces a further strategic dimension. The gorge floors, after significant rainfall events, carry substantial water in the seasonal torrents running below the cliff faces. Access to this water source from the castle above — via ropes, pulleys, or personnel descending the ravine paths to fill vessels — provided a secondary supply that supplemented cistern storage during extended sieges. An investing force attempting to interrupt this supplementary supply would need to establish pickets in the ravine floor itself, a dangerous and difficult position to maintain under fire from the castle wall-walk above and from the cave church complexes distributed along the ravine walls. The hydrological resources of the ravines were thus both a defensive obstacle and a water supply asset — complementary functions that reinforced the integrated character of the hydro-defensive system.

External water sources — the springs and wells of the surrounding plain — were the first targets any besieging force sought to control, cutting off the castle’s external supply lines and forcing dependence on stored reserves. This is why the internal cistern capacity was so critical to medieval defensive strategy: it represented water independence, the capacity to sustain operations without access to anything outside the walls. Massafra’s calcarenite geology, which made cistern cutting straightforward and the resulting tanks reliably impermeable when plastered, gave its garrison a significant practical advantage over defenders of castles built on less workable foundation materials.

The cisterns served the year-round domestic and sanitary needs of the garrison independently of siege conditions. The same network that stored siege water also supported the daily washing of horses and equipment, the preparation of food, the cooling of forge operations, and the maintenance of personal hygiene standards that affected garrison health and fighting capability. Water management at a medieval castle was a complex logistical system — not a single cistern but a network of collection surfaces, channels, filtering beds, and holding tanks — and the quality of this infrastructure was a direct determinant of the garrison’s operational effectiveness over time.

The Castle in the Settlement System: Command, Control, and Territorial Authority

Massafra’s castle was never purely a military installation. Throughout the medieval and early modern periods, it simultaneously served as the seat of feudal authority, the centre of local administrative functions, the residence of the castellan and his household, and the symbol of sovereign power over the surrounding territory. Reading the castle’s architecture requires acknowledging these overlapping functions and understanding how they shaped the spaces within the enclosure.

The distribution of space within the castle reflected the social hierarchy of medieval lordship. The castellan’s residential quarters occupied the most sheltered and private areas of the enclosure — the range opposite the main gate, highest in the structure and furthest from the main threat axis. Service buildings — stables, stores, kitchens, forge, bakehouse — occupied the more utilitarian zones adjacent to the enclosure walls. The garrison’s living quarters occupied the wall-walk level buildings and structures abutting the inner faces of the curtain walls, where the soldiers could reach their defensive positions with the minimum movement in the event of alarm.

Administrative functions were exercised in a hall or audience chamber within the castle, where the castellan received appeals, administered justice over the local feudal territory, collected dues and obligations, and maintained the written records of the estate. The castle was, in the fullest medieval sense, the head of the territorial economy — the place from which the agricultural surplus of the surrounding countryside was extracted, recorded, and redistributed. This administrative function gave the castle its enduring importance even in periods of relative military security, when its defensive role was less actively exercised than its function as the visible and physical centre of local authority.

The castle’s visual dominance over the surrounding landscape was itself a political statement. From the Taranto plain to the east and south, the castle’s towers defined the skyline of the plateau town and projected the presence of feudal authority across the agricultural territory that depended on it. The cylindrical towers’ height — rising well above the adjacent curtain wall in the Aragonese rebuilding — was calculated not only for tactical observation advantage but for this symbolic function, making the lord’s power visible at a distance to all who worked the surrounding fields and travelled the roads below the plateau. Military architecture in this period was always simultaneously political architecture, and the castle’s visual prominence from the plain below was as deliberately designed as its defensive geometry.

The gate structure deserves particular attention as the threshold between the military and the civic. Aragonese gate design in Puglia at this period favoured the bent-approach entry — a gate passage that required multiple changes of direction, each defended by murder-holes, portcullises, and flanking fire from adjacent tower loops — over the direct through-passage of earlier Norman and Angevin gates. The gate was also the point of daily interaction between the garrison and the civilian community of the town: the place where dues were collected, permission to enter was granted or denied, and the visual authority of the lord was most immediately demonstrated to those passing beneath it.

Conservation Challenges and Archaeological Significance

Massafra’s castle and ravine system present conservation challenges inseparable from the architectural and geological analysis detailed above. The same calcarenite that gave the defenders their natural barriers and building material presents conservators with a complex, evolving problem of gradual decay driven by the same hydro-geological processes that created the defensive landscape in the first place.

Calcarenite is inherently susceptible to surface decay through the mechanism known as alveolar weathering — the progressive dissolution and spalling of the stone surface in response to cycles of wetting and drying, salt crystallisation within the pores, and the biological activity of microorganisms that colonise stone surfaces in the moderate climate of coastal Puglia. The ravine walls, continuously subject to moisture from above through seasonal rain, from below through groundwater percolation, and from the internal humidity differentials of the gorge microclimate, are in a state of continuous weathering. Episodic block failures — triggered by prolonged rainfall events that saturate fractured upper cliff zones — are a normal part of the ravine’s geological evolution, the same process that created the gorge now deepening it.

The rupestrian complexes within the ravines are particularly vulnerable. The cave churches and domestic spaces were carved to a minimum wall thickness consistent with structural stability at the time of cutting. The calcarenite’s progressive weathering has reduced some of these surfaces to a condition of fragility that makes physical intervention both necessary and technically demanding. The Byzantine frescoes within the cave oratories face specific threats from crystallisation salts migrating through the walls from the saturated calcarenite behind them, causing gradual detachment of the painted surface layers. Conservation programmes for these frescoes require continuous monitoring and periodic consolidation intervention, using reversible materials that can be adjusted as understanding of the physical processes improves with accumulated monitoring data.

The castle fabric itself suffers from a combination of structural deterioration and the interventions of successive periods of use and adaptation. The wall-head fabric — the uppermost courses of the curtain walls and towers, where roof structures and parapet details have been lost to abandonment — is extensively deteriorated, with mortar joint erosion exposing individual blocks to weathering and potential instability under gravity loading. The rock-cut ditch, partially infilled in later periods when its military function was no longer relevant, requires excavation and stabilisation work to restore its original profile and prevent further deterioration of the adjacent wall bases whose foundations were designed with the ditch present.

Archaeological investigations of the castle and ravine complexes have yielded significant material evidence for the site’s occupation sequence. Ceramic finds from ravine floor deposits document continuous activity from the Byzantine period through the medieval and early modern eras, with particular concentrations of material associated with the occupation phases of the cave complexes. Numismatic evidence from castle contexts helps date specific building phases with greater precision than architectural analysis alone allows, correlating coin distributions with the construction and use periods identified through masonry analysis. The integration of archaeological, historical, and architectural evidence at Massafra represents the kind of multi-disciplinary investigation that southern Italy’s complex layered sites require and reward.

The site’s significance within the broader context of southern Italian military and Byzantine architectural heritage is recognised by Italian conservation authorities. The Castello Aragonese di Massafra carries state monument protection, and the ravine complexes with their rupestrian churches hold both national and regional heritage designation. The challenge of managing a site that combines active geological evolution, a complex medieval and Byzantine heritage inventory, and the pressures of a contemporary urban fabric is substantial — but the engagement of local cultural institutions and research bodies with the site’s conservation needs suggests that its architectural and historical importance is being seriously sustained.

Frequently Asked Questions

What is the “hydro-defensive shield” of Massafra?

The hydro-defensive shield refers to the integrated defensive system formed by the two natural ravines that cut through Massafra’s plateau, acting in combination with the Aragonese castle at the eastern approach. The ravines were carved by centuries of water erosion into near-vertical calcarenite cliffs of 15–30 metres, creating natural moats on three sides of the settlement. In winter and spring, seasonal water flows at the gorge floors add a genuine hydraulic barrier. The castle covers the one approach — the eastern — where the ravines provide no protection. The term captures the essential point that the primary defensive infrastructure at Massafra is geological and hydrological in origin, with constructed fortification serving as a complement to natural geology rather than its replacement.

Are there true Renaissance bastions at Massafra’s castle?

No. The term “bastion” in strict military architectural usage refers to the low, angled, arrow-headed projections of the trace italienne system developed from the 1520s onward. Massafra’s castle predates this development: its corner towers are cylindrical — a transitional form characteristic of Aragonese military building in the late fifteenth century — not true angled bastions. Cylindrical towers represent an important step toward the fully developed bastioned system, offering superior deflection of cannonballs and wider fields of defensive fire compared to square medieval towers, but they are not bastions in the technical sense. Massafra’s castle represents transitional military architecture, standing between the medieval tower-and-curtain tradition and the Renaissance bastioned trace, and its value to military architectural history lies precisely in documenting this transitional moment.

How old are the rock-cut churches in Massafra’s ravines?

The rupestrian churches and oratories in Massafra’s two ravines were carved primarily during the Byzantine period of southern Italy’s history, broadly from the sixth to the tenth centuries CE. This encompasses the period of Justinianic reconquest of the Italian peninsula, the long Byzantine administrative presence in Puglia, and the era of Arab raiding that drove communities into naturally defended positions. Frescoed decoration within the cave churches spans a longer period, with some iconographic programmes extending into the eleventh and twelfth centuries, reflecting continued use of the cave sanctuaries into the Norman period. The sanctuary of the Madonna della Scala in the Gravina della Madonna della Scala is the most visited and best-preserved of these complexes, preserving Byzantine fresco cycles of significant iconographic and art-historical importance.

What building materials were used to construct Massafra’s castle?

The castle is built throughout from local calcarenite — the sedimentary limestone that forms both the ravine walls and the plateau surface. Calcarenite is composed of cemented shell fragments and marine bioclasts, easily worked with iron chisels when freshly quarried and hardening on exposure to air. Its ready local availability made it the natural building material for every construction phase from the Norman period through the Aragonese rebuilding. The mortar matrix is lime-based, made from calcined local limestone. The rock-cut ditch at the landward approach was excavated through the same calcarenite, making ditch-cutting and foundation preparation a single integrated operation that exposed solid bearing rock for the adjacent curtain wall foundations while simultaneously creating the military obstacle.

What was the Norman contribution to Massafra’s fortification?

The Normans established the initial constructed fortification at Massafra in the eleventh century, recognising the site’s strategic value as a plateau stronghold commanding the Taranto plain approaches. Norman military architecture in Puglia at this period employed square or rectangular towers of local rubble masonry within a curtain wall enclosure, with a donjon as the principal defensive and residential structure. Massafra’s Norman castle occupied the same promontory at the plateau’s eastern edge where the later Aragonese structure stands, exploiting the same defensive logic — covering the approach left unguarded by the ravines — from the beginning of the site’s constructed military history. The Norman building established the site’s spatial organisation and the relationship between constructed fortification and natural gorge defenses that successive phases maintained and elaborated.

How did the Aragonese program differ from earlier medieval fortification at Massafra?

The Aragonese program of the late fifteenth century responded to artillery in ways that earlier medieval construction did not anticipate. The key modifications included replacement of square medieval flanking towers with cylindrical forms better able to deflect cannonballs; thickening of curtain walls by filling their inner faces with earth and rubble to absorb projectile energy; lowering and widening of parapet embrasures to accommodate harquebusiers; deepening and widening of the rock-cut ditch; and introduction of battered — outward-splayed — tower bases to deflect artillery impact and resist undermining. These changes did not transform the castle into a fully modern fortification — that required the trace italienne system developed somewhat later — but they represent the most technically informed response to artillery available in the 1480s–1510s period.

How does Massafra’s defensive system compare to other gravina towns in Puglia?

Massafra’s primary distinction within the regional comparison group is its dual-gorge geometry. Grottaglie, Laterza, and Castellaneta each exploit a single ravine defensively, leaving more of the settlement perimeter to be covered by constructed fortification. Massafra’s two ravines, approaching from different axes and converging near the town centre, cover three-quarters of the plateau perimeter with natural barriers, leaving only the eastern approach for the castle to defend. This dual-gorge configuration is the most advantageous version of the gravina fortress typology in the Taranto hinterland, providing the greatest defensive economy of any comparable site in the region. The relationship between natural and constructed investment is inversely proportional across these sites: the more formidable the natural barrier, the simpler the constructed castle required to complete the perimeter.

What role did the rock-cut cisterns play in Massafra’s castle defenses?

The cisterns cut into the calcarenite bedrock beneath the castle’s interior were critical to siege endurance. They collected rainwater from every impermeable surface within the enclosure and stored it in hydraulic lime-plastered tanks capable of sustaining the garrison through the seven-to-eight-month Mediterranean dry season without access to external water sources. An investing force’s standard strategy of blocking external wells and springs was neutralised by sufficient cistern capacity, forcing the attacker to maintain the siege for the full duration of stored water rather than achieving rapid capitulation through water deprivation. The ravine floors also provided a secondary water source via the seasonal torrents below, which could be accessed from the cave complexes in the gorge walls — a supplementary supply that an attacking force would have struggled to interdict without physically occupying the dangerous ravine floors under fire.

What is the conservation status of Massafra’s castle and ravines?

The Castello Aragonese di Massafra carries state monument protection under Italian heritage law, and the ravine complexes with their rupestrian churches hold both national and regional designation. The calcarenite fabric of both castle and ravines is subject to ongoing weathering through alveolar surface decay, salt crystallisation, and episodic block failure at the cliff faces. The Byzantine frescoes within the cave oratories face specific threats from migrating crystallisation salts causing detachment of painted surface layers. Conservation programmes involve continuous monitoring and periodic consolidation using reversible materials. The site’s importance for both transitional military architectural history and Byzantine cultural heritage sustains institutional engagement with its conservation needs at national and regional levels.

Why is Massafra’s defensive architecture significant for military architectural history?

Massafra’s significance lies at the intersection of three distinct architectural-historical interests. First, its dual-gorge defensive geography represents the most sophisticated version of the gravina fortress typology in Puglia — a model of how medieval military engineers exploited natural landscape to multiply defensive effectiveness with minimal constructional investment, leaving the gorges to do the work of walls on three sides. Second, the castle fabric’s transitional character — Norman foundations through Aragonese adaptation with cylindrical towers and battered bases — documents the specific technological anxieties of the late fifteenth century as military engineers struggled to respond to artillery before the fully developed trace italienne solution became available. Third, the integration of Byzantine troglodyte infrastructure with the constructed defensive system illustrates how pre-existing cultural landscape features were incorporated into medieval military planning in ways that extended defensive depth beyond the purely constructed fortification tradition.
